The installation of Exolution WebUI is not mandatory. It is required only to access Exolution viewer in a web interface. The desktop interface will work without installing Exolution WebUI. The following are the steps to install Exolution WebUI.
Installing Exolution WebUI
- Copy the folder ExolutionWebUI from the installable to the C:\inetpub\wwwroot\ of the Exolution server, or to a dedicated web server in the network of the Exolution Server.
- Open the internet Information Services (IIS) Manager
- Right-Click on the server name in IIS. It will open a popup menu. Click on Add Website
- Provide the site name “ExolutionWebUI” (single word without spaces) and point the Physical path to the folder C:\inetpub\wwwroot\ExolutionWebUI
- Select the binding Type https. Provide the Port: 4430. Select an SSL certificate.
- Click on OK
- Open the file C:\inetpub\wwwroot\ExolutionWebUI\appsettings.json and check the value of ExolutionServicePort. It must match with the Settings.xml file’s Port1 value. Change the value in appsettings.json if it is not matching with Settings.xml
Installing Exolution Host Service
- Copy the folder ExolutionHostService from the installable to the C:\inetpub\wwwroot\ of the Exolution server, or to a dedicated web server in the network of the Exolution Server.
- Open the internet Information Services (IIS) Manager
- Right-Click on the server name in IIS. It will open a popup menu. Click on Add Website
- Provide the site name “ExolutionHostService” (single word without spaces) and point the Physical path to the folder C:\inetpub\wwwroot\ExolutionHostService
- Select the binding Type http. Provide Port: 6050
- Click on OK
Restart Exolution Primary Service and Restart IIS Server.

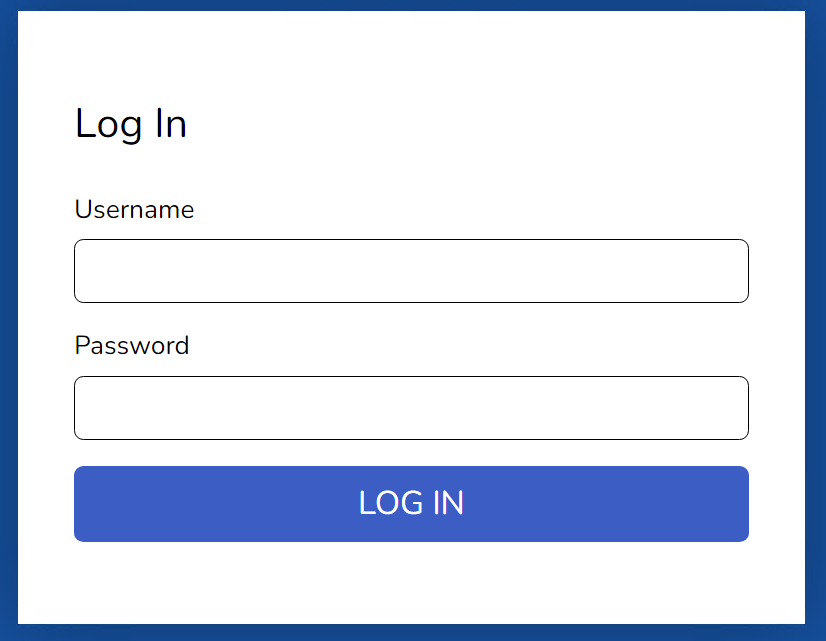

Check https://localhost:4430 It should display a login page. The credentials are the same as for the desktop viewer.
